Internal structure diagram of F series parallel shaft helical gear reducer!

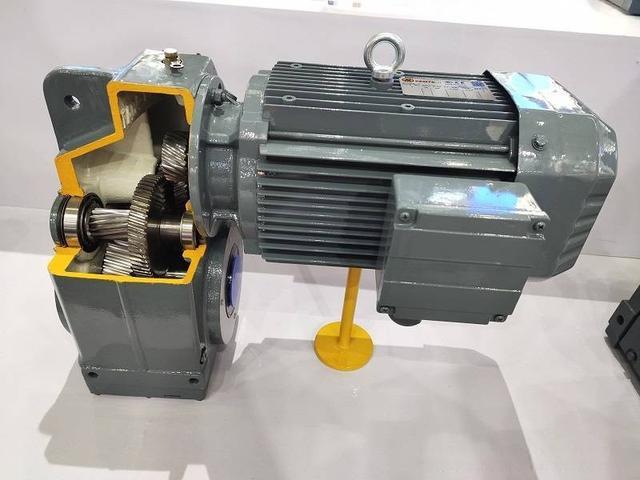

Today we are going to introduce the internal structure diagram of a helical gear reducer, but it belongs to the parallel shaft output form. This type of gearbox is often called the F series gearbox, but many people do not know what its interior is like. Today, we will use a processed model to see some specific details of its cross-sectional diagram.

From the above structural diagram, it can be seen that the internal structure of the reducer is all gears, and their power transmission is completed through the transmission between helical gears. The reason why it is called parallel shaft is because the output end of the reducer is parallel to the input end, so it is called parallel shaft output.
