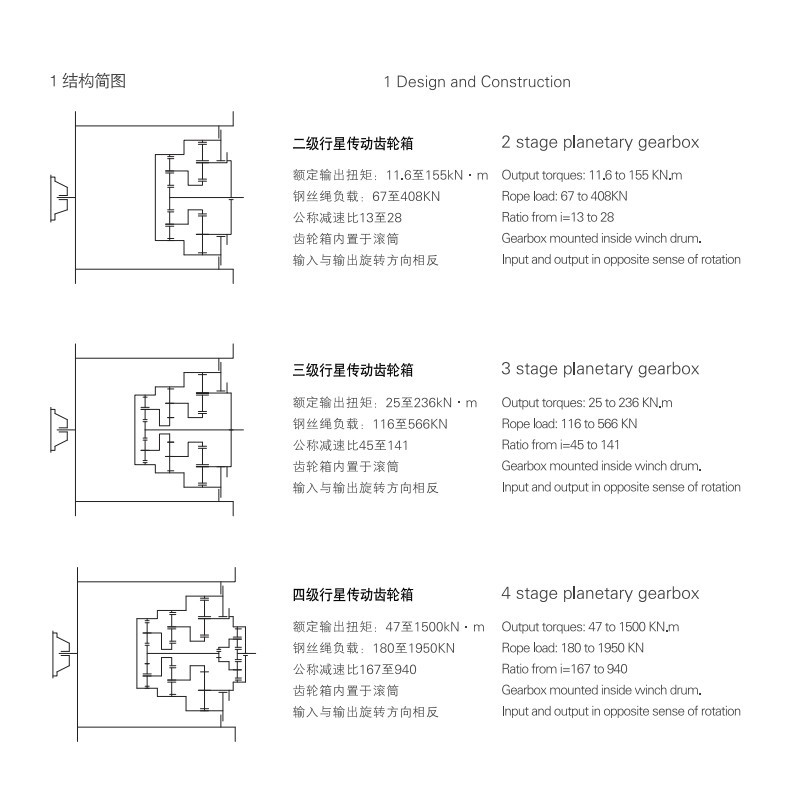

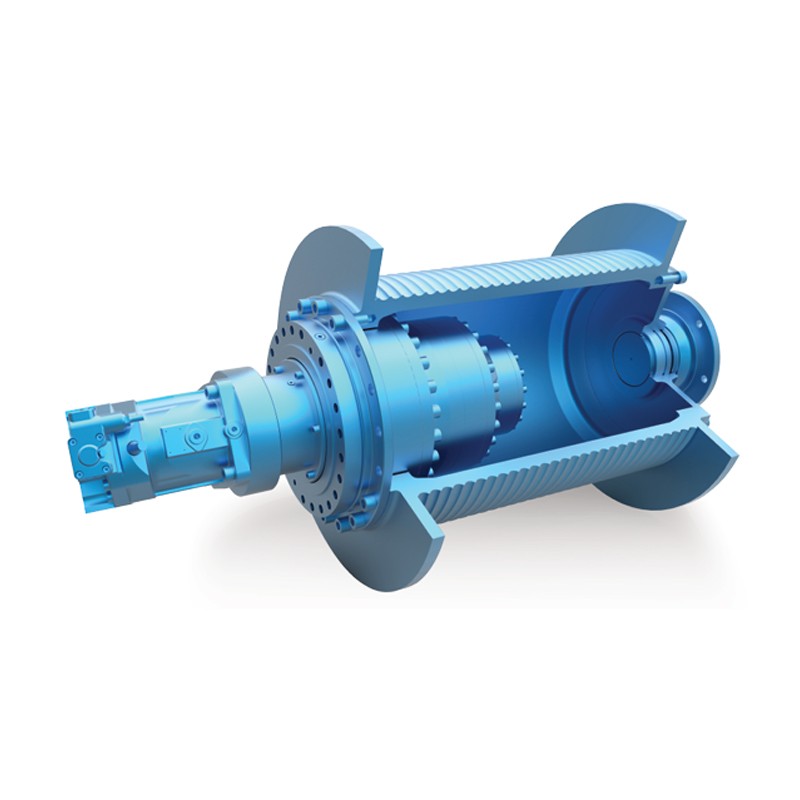

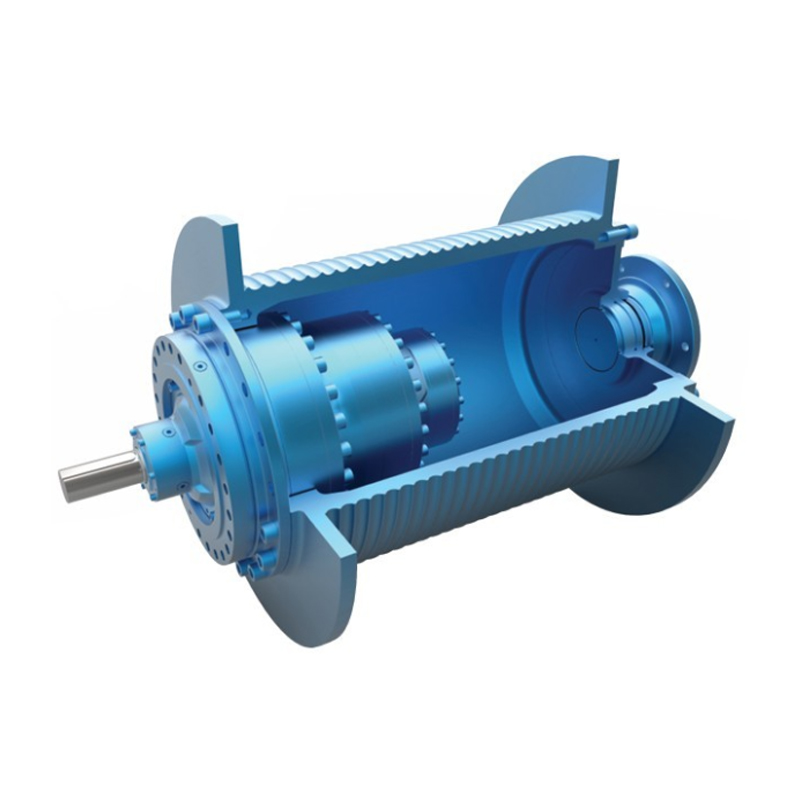

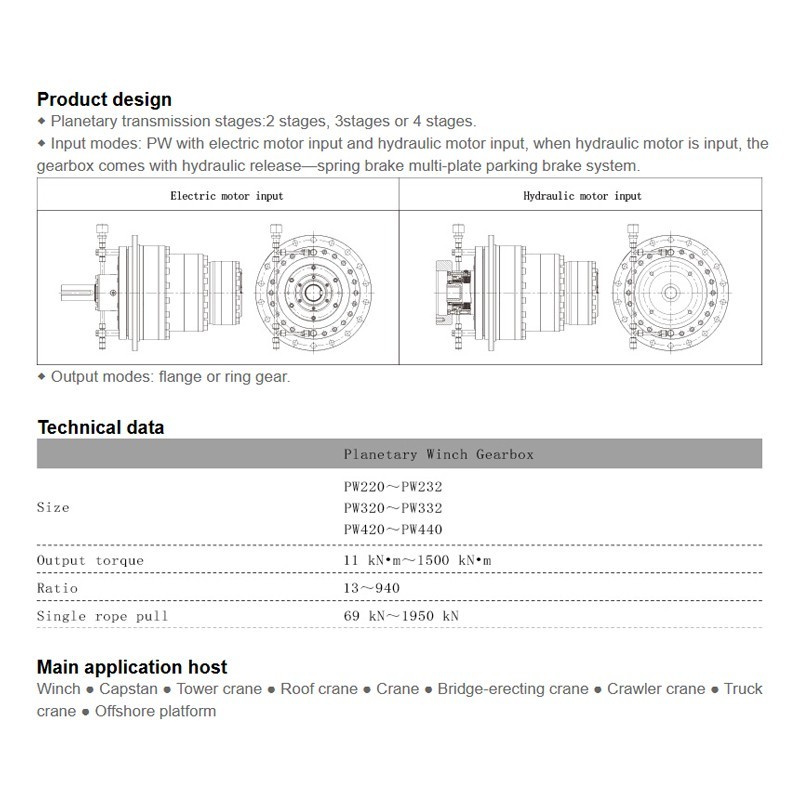

2 stage planetary gearbox

Output torques: 11.6 to 155 KN.m

Rope load: 67 to 408KN

Ratio from i=13 to 28

Gearbox mounted inside winch drum.

Input and output in opposite sense of rotation

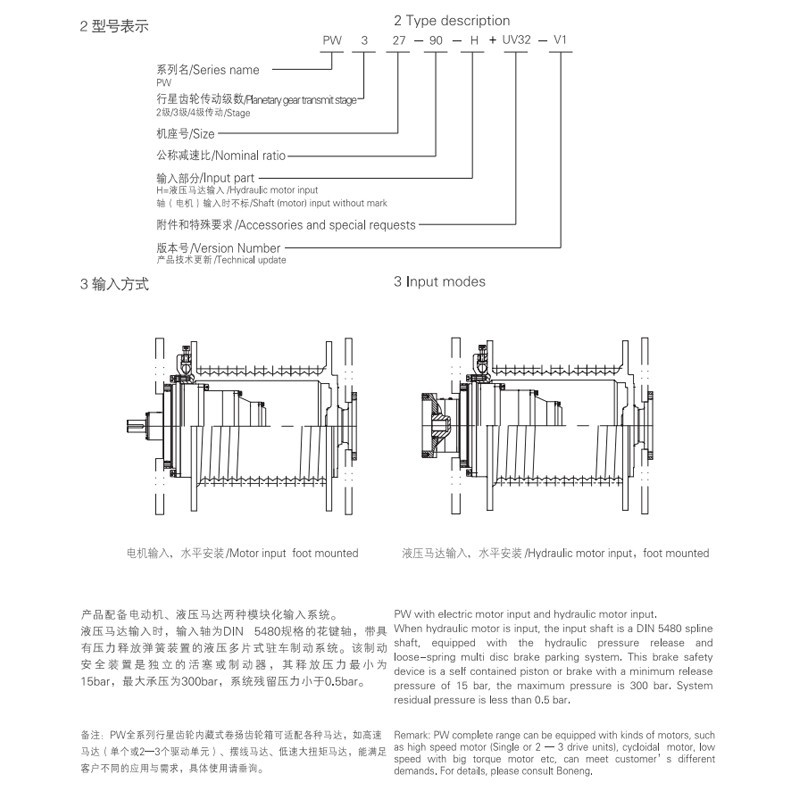

PW3-20  PW3-22  PW3-24  PW3-25  PW3-26

PW3-27  PW3-28  PW3-29  PW3-30  PW3-31

PW3-32  PW3-33  PW3-34  PW3-36  PW3-38

PW3-40

3 stage planetary gearbox

Output torques: 25 to 236 KN.m

Rope load: 116 to 566 KN

Ratio from i=45 to 141

Gearbox mounted inside winch drum.

Input and output in opposite sense of rotation

PW4-20  PW4-22  PW4-24  PW4-25  PW4-26

PW4-27  PW4-28  PW4-29  PW4-30  PW4-31

PW4-32  PW4-33  PW4-34  PW4-36  PW4-38

PW4-40

4 stage planetary gearbox

Output torques: 47 to 1500 KN.m

Rope load: 180 to 1950 KN

Ratio from i=167 to 940

Gearbox mounted inside winch drum.

lnput and output in opposite sense of rotation
