Product introduction: FCN series aluminum alloy speed reducer is a new generation product developed by our company on the basis of introducing foreign technology.
Mainly have the following characteristics:
1. High-quality aluminum alloy casting, light weight and no rust.
2. The output torque is large.
3. The transmission is stable and the noise is small.
4, good heat dissipation performance.
5, beautiful and durable, small size.
6, can be applied to all-round installation.
Single-stage aluminum alloy worm gear reducer models are: 25304050637590110130 single-stage aluminum alloy worm gear reducer speed ratio: 1:7.51:101:151:201:251:301:401:501:601:801:100
The two-stage aluminum alloy worm gear reducer models are: 25-3025-4030-4030-5030-6340-7540-9050-11063-13063-150 single-stage aluminum alloy worm gear reducer speed ratio: 1:1001:1501:2001 :2501:3001:4001:5001:6001:7501:9001:12001:15001:18001:24001:3000

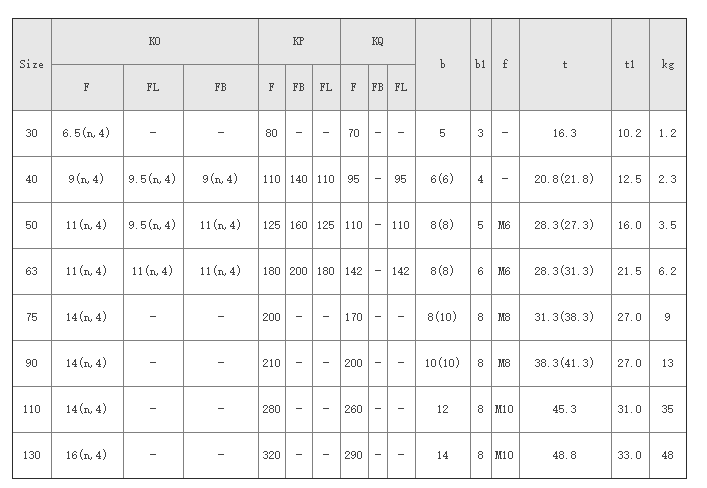

Size | A | B | C | D(H7) | D1(J6) | E | F | G | G1 | G2 | H | I | L | M | N(h8) | N1 | O | P | Q | R |
30 | 54 | 20 | 80 | 14 | 9 | 97 | 32 | 55 | 63 | 51 | 40 | 30 | 56 | 65 | 55 | 29 | 6.5 | 75 | 44 | 57 |
40 | 70 | 23 | 100 | 18(19) | 11 | 121.5 | 43 | 70 | 78 | 60 | 50 | 40 | 71 | 75 | 60 | 36.5 | 6.5 | 87 | 55 | 71.5 |
50 | 80 | 30 | 120 | 25(24) | 14 | 144 | 49 | 80 | 92 | 74 | 60 | 50 | 85 | 85 | 70 | 43.5 | 8.5 | 100 | 64 | 84 |
63 | 100 | 40 | 144 | 25(28) | 19 | 174 | 67 | 95 | 112 | 90 | 72 | 63 | 103 | 95 | 80 | 53 | 8.5 | 110 | 80 | 102 |
75 | 120 | 50 | 172 | 28(35) | 24 | 205 | 72 | 112.5 | 120 | 105 | 86 | 75 | 112 | 115 | 95 | 57 | 11 | 140 | 93 | 119 |
90 | 140 | 50 | 208 | 35(38) | 24 | 238 | 74 | 129.5 | 140 | 125 | 103 | 90 | 130 | 130 | 110 | 67 | 13 | 160 | 102 | 135 |
110 | 170 | 60 | 252.5 | 42 | 28 | 295 | - | 160 | 155 | 142 | 127.5 | 110 | 144 | 165 | 130 | 74 | 14 | 200 | 125 | 167.5 |
130 | 200 | 80 | 292.5 | 45 | 30 | 335 | - | 180 | 170 | 162 | 147.5 | 130 | 155 | 215 | 180 | 81 | 16 | 250 | 140 | 187.5 |
