Product introduction: SizeABCC1D(H7)d(j6)EFGG1G2HH1II1LMN(h8)N1N2OPQRR125/3054-807014-97324563-403530255665552922.56.57544574825/4070-1007018(19)-121.5434578-5035402571756036.522.56.5875571.54830/4070201008018(19)9121.5435

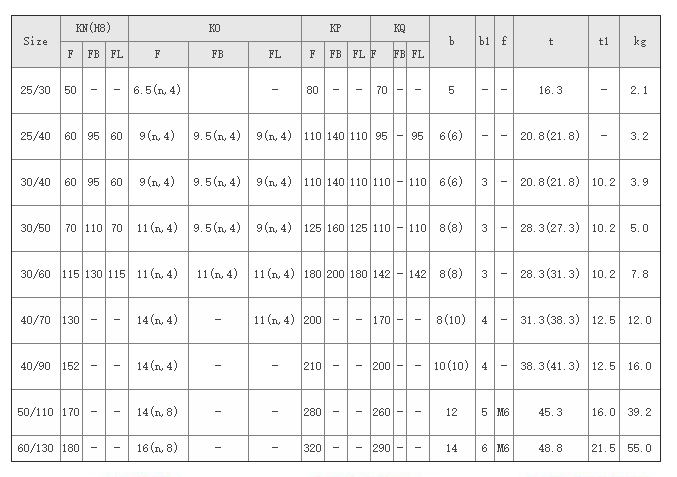

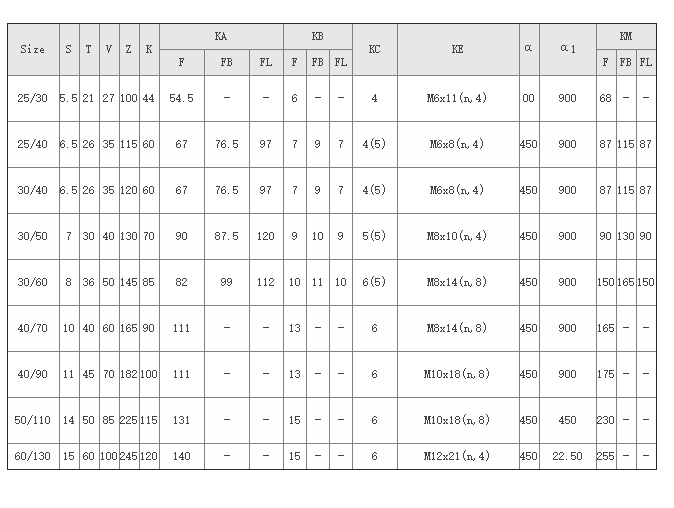

Size | A | B | C | C1 | D(H7) | d(j6) | E | F | G | G1 | G2 | H | H1 | I | I1 | L | M | N(h8) | N1 | N2 | O | P | Q | R | R1 |
25/30 | 54 | - | 80 | 70 | 14 | - | 97 | 32 | 45 | 63 | - | 40 | 35 | 30 | 25 | 56 | 65 | 55 | 29 | 22.5 | 6.5 | 75 | 44 | 57 | 48 |
25/40 | 70 | - | 100 | 70 | 18(19) | - | 121.5 | 43 | 45 | 78 | - | 50 | 35 | 40 | 25 | 71 | 75 | 60 | 36.5 | 22.5 | 6.5 | 87 | 55 | 71.5 | 48 |
30/40 | 70 | 20 | 100 | 80 | 18(19) | 9 | 121.5 | 43 | 55 | 78 | 51 | 50 | 40 | 40 | 30 | 71 | 75 | 60 | 36.5 | 29 | 6.5 | 87 | 55 | 71.5 | 57 |
30/50 | 80 | 20 | 120 | 80 | 25(24) | 9 | 144 | 49 | 55 | 92 | 51 | 60 | 40 | 50 | 30 | 85 | 85 | 70 | 43.5 | 29 | 8.5 | 100 | 64 | 84 | 57 |
30/60 | 100 | 20 | 144 | 80 | 25(28) | 9 | 174 | 67 | 55 | 112 | 51 | 72 | 40 | 63 | 30 | 103 | 95 | 80 | 53 | 29 | 8.5 | 110 | 80 | 102 | 57 |
40/70 | 120 | 23 | 172 | 100 | 28(35) | 11 | 205 | 72 | 70 | 120 | 60 | 86 | 50 | 75 | 40 | 112 | 115 | 95 | 57 | 36.5 | 11 | 140 | 93 | 119 | 71.5 |
40/90 | 140 | 23 | 208 | 100 | 35(38) | 11 | 238 | 74 | 70 | 140 | 60 | 103 | 50 | 90 | 40 | 130 | 130 | 110 | 67 | 36.5 | 13 | 160 | 12 | 135 | 71.5 |
50/110 | 170 | 30 | 252.5 | 120 | 42 | 14 | 295 | - | 80 | 155 | 74 | 127.5 | 60 | 110 | 50 | 144 | 165 | 130 | 74 | 43.5 | 14 | 200 | 125 | 167.5 | 84 |
60/130 | 200 | 40 | 292.5 | 144 | 45 | 19 | 335 | - | 95 | 170 | 90 | 147.5 | 72 | 130 | 63 | 155 | 215 | 180 | 81 | 53 | 16 | 250 | 140 | 187.5 | 102 |
