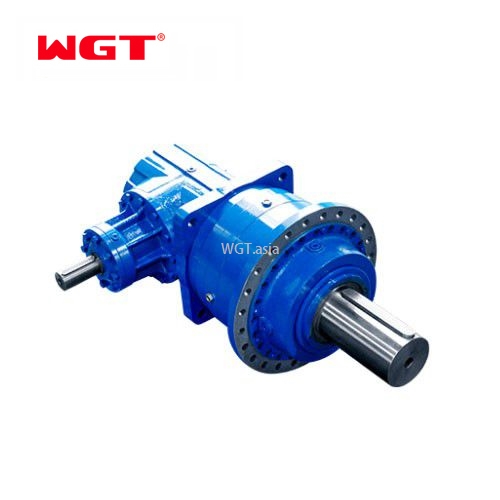

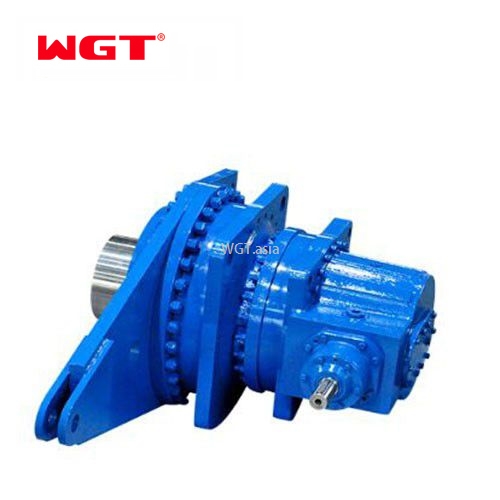

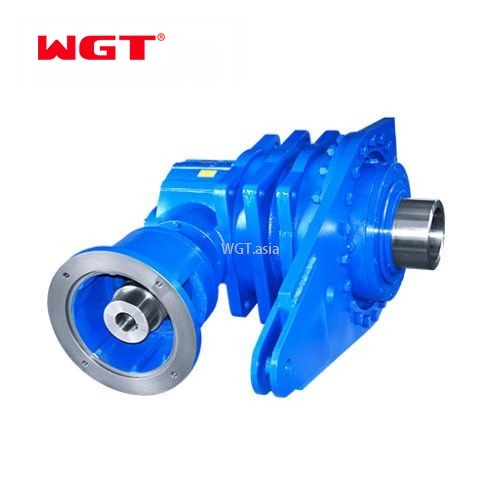

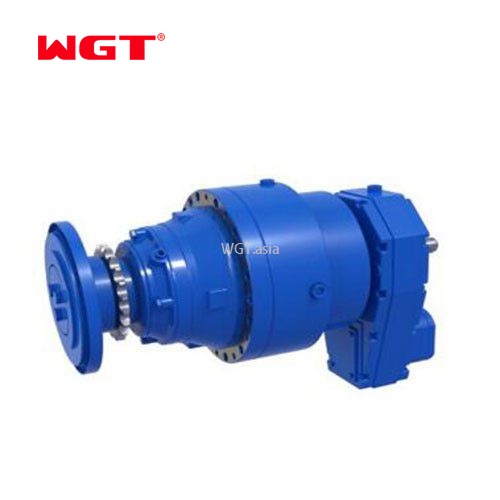

P series high torque performance planetary reduction gearbo -P9-36

P series planetary gear units,High Quality P series planetary gear units,P series planetary gear units Details
P series gear reducer Electronic Catalog PDF Catalog

1. P series planetary reducer adopts modular design and can be changed according to customer requirements;

2. The reducer adopts involute planetary gear transmission, and the internal control uses internal and external meshing and power splitting;

3. The gears are all carburized and quenched to obtain a high-hard wear-resistant surface. After the gears are heat-treated, all the teeth are ground, which reduces the noise and improves the efficiency and service life of the whole machine.

4. P series planetary gear reducer features light weight, small volume, large transmission ratio range, high efficiency, stable operation and low noise adaptability. Reducer is widely used in metallurgy, mining, lifting and transportation, power, energy, building and building materials, light industry, transportation and other industrial sectors.

Performance characteristics:

1. P series planetary gear reducer adopts involute planetary gear transmission, which makes rational use of internal and external gears and power splitting. Therefore, it has light weight, small size and transmission ratio range.

Large, high efficiency, stable operation, low noise, strong adaptability, etc.

2. The box body is made of spherical plastic cast iron, which greatly improves the rigidity and shock resistance of the box.

3. Input mode: concentric shaft input, helical gear input, bevel gear, helical gear input, bevel gear input.

4. Output mode: internal spline type, hollow shaft shrinking disc type, external spline type, solid shaft flat key.

5, installation form: horizontal installation, vertical installation, torque arm installation.

6, using modular design; can be changed according to customer requirements.

7, and R, K series combination can get a larger speed ratio.

Technical Parameters:

Speed ratio range: basic type 25-4000

Torque range: 2.6-900 kNm

Power range: 22-1920 kW

P Series Industrial Gearbox Overview

1) Modular design, can be changed according to customer requirements.

2) The box body is made of ductile iron, which greatly improves the rigidity and shock resistance of the box.

3) The sun gear, planetary gear, inner ring gear and spiral bevel gear in the box are treated by controlled atmosphere carburizing and quenching to obtain high-hard wear-resistant table. After heat treatment, all teeth are ground, which reduces noise and improves the whole machine. Efficiency and service life.

4) Input mode: concentric axis input, helical gear input, bevel gear-helical gear input, bevel gear input.

5) Output mode: internal spline type, hollow shaft shrink disc type, external spline type, solid shaft flat key.

6) Installation form: horizontal installation, vertical installation, torque arm installation.

7) P series products are available in 9-34 size, and the planetary transmission series has 2 and 3 levels. The speed ratio is 25-4060. Combined with WEIGAO's other series of reducers (such as R, K series) to get a larger speed ratio.

Product Description

0.4kW~12,934kW High Torque P Series Planetary Gearbox Reducer

Components:

1. Housing: Ductile Cast Iron
2. Gearset: Planetary Gear Set (Epicyclic Gearing)
3. Input Configurations:
Integrated with Electric Motors (AC Motors, Hydraulic Motors, Geared Motors)
IEC-normalized Motor Flange & Motor Adaptor
Keyed Solid Shaft Input
4. Output Configurations:
Keyed Solid Shaft Output

Involute Splined Solid Shaft Output (GB or DIN Standard)

Involute Splined Hollow Shaft Output (GB or DIN Standard)
Hollow Shaft Output with Shrink Disk
5. Optional Accessories:
Gear Unit Base for Horizontal Mounted
Torque Arm, Torque Shaft Support
Motor Mounting Bracket
Dip Lubrication Compensation Oil Tank
Forced Lubrication Oil Pump
Cooling Fan, Auxiliary Cooling Devices

Models:

P2N – 2 Stage Planetary Gear Set, Coaxial
P2L – 2 Stage Planetary Gear Set Integrated with Spiral Bevel Gear Pair, Right Angle
P2S – 2 Stage Planetary Gear Set Integrated with Helical Gear Pair, Parallel Shaft
P2K – 2 Stage Planetary Gear Set Integrated with Helical Gear Pair & Bevel Gear Pair, Right Angle
P3N – 3 Stage Planetary Gear Set, Coaxial
P3S – 3 Stage Planetary Gear Set Integrated with Helical Gear Pair, Parallel Shaft
P3K – 3 Stage Planetary Gear Set Integrated with Helical Gear Pair & Bevel Gear Pair, Right Angle
Frame Sizes: 9, 10, 11, ... 34, 35, 36 (exclude 15)

Features:

1. AOKMAN® P series planetary gear units/(epicyclic gearboxes) have various options from 7 types and 27 frame sizes, can ensure up to 2600kN.m torque and 4,000:1 ratio

2. High efficiency, high output torque, suitable for heavy duty working conditions and applications

3. High reliability, low noise
4. Highly modular design
5. Optional accessories

6. Easily combined with other gear units, such as helical, worm, bevel or helical-bevel gear units
