The RXG Series has long has long been established as a best seller for quarry and mine applications where absolute reliability and low maintenance are key factors. Another winning factor is the backstop option that prevents back driving in the case of inclined conveyors. This gearbox can be completed by selecting from a wide range of electric motors entirely manufactured by weigao
Electronic Catalog
PDF Catalog
|

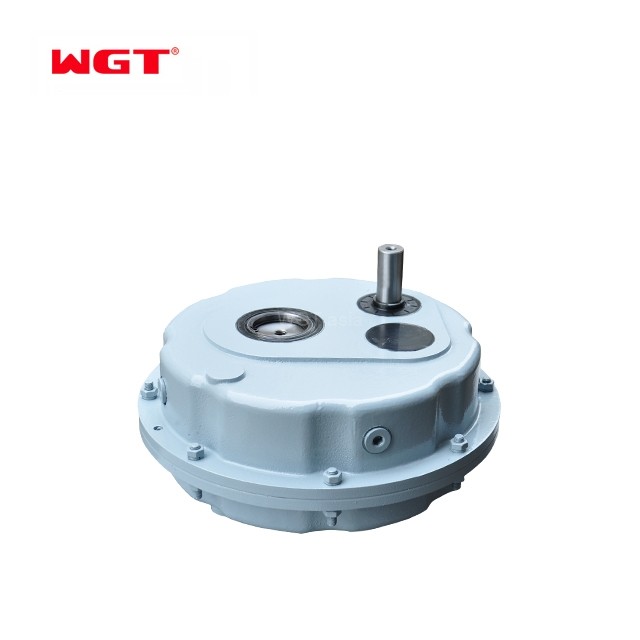

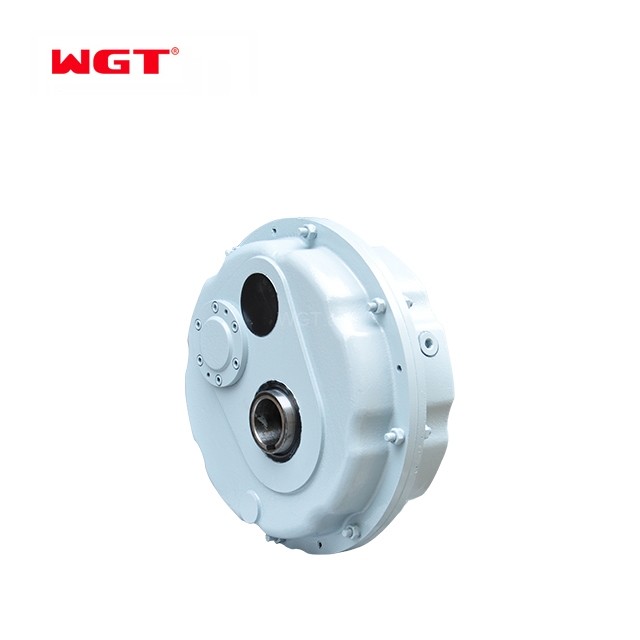

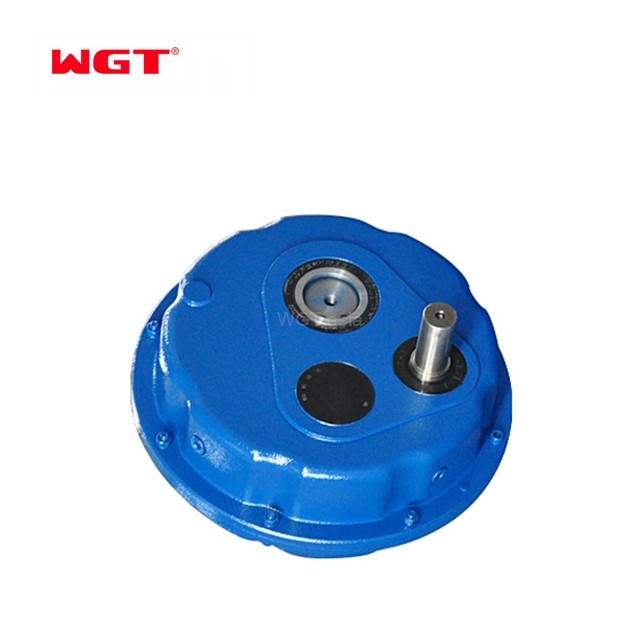

Redsun RXG Series Shaft Mounted Hanging Gear Speed Reducer |
|||||
|
Type |
Ratio
|
Model |
Standard bore (mm) |
Rated power(KW) |
Rated torque(N.m) |
|
RXG series |
5
7
10
12.5
15
20
25
31
|
RXG30 |
30 | 3 | 180 |
| RXG35 | 35 | 5.5 | 420 | ||
| RXG40 | 40,45 | 15 | 950 | ||
| RXG45 | 45,50,55 | 22.5 | 1400 | ||
| RXG50 | 50,55,60 | 37 | 2300 | ||
| RXG60 | 60,65,70 | 55 | 3600 | ||
| RXG70 | 70,85 | 78 | 5100 | ||
| RXG80 | 80,100 | 110 | 7000 | ||
Quick Details
Applicable Industries:Manufacturing Plant, Food & Beverage Factory, Energy & Mining
Gearing Arrangement:Helical
Output Torque:up to 17000KN.m
Input Speed:up to 2000rpm
Output Speed:up to 400rpm
Place of Origin:Zhejiang, China
Brand Name:WGT
Product name:shaft mounted reducer
Color:Grey RAL7031/7040,blue RAL5010
Warranty:1 Year
Application:Food ,Plastic, Convery, Machinery, Feed, Mining and so on
Certificate:ISO9001 , CE
Mounting Position:Horizontal (Foot Mounted, Shaft Mounted)
Packing:Wooden Box
Ratio:5.36~197.37
Bearing:C&U, NAK, NSK,SKF
OEM service: OEM service
Applicable Industries:Manufacturing Plant, Food & Beverage Factory, Energy & Mining
Gearing Arrangement:Helical
Output Torque:up to 17000KN.m
Input Speed:up to 2000rpm
Output Speed:up to 400rpm
Place of Origin:Zhejiang, China
Brand Name:WGT
Product name:shaft mounted reducer
Color:Grey RAL7031/7040,blue RAL5010
Warranty:1 Year
Application:Food ,Plastic, Convery, Machinery, Feed, Mining and so on
Certificate:ISO9001 , CE
Mounting Position:Horizontal (Foot Mounted, Shaft Mounted)
Packing:Wooden Box
Ratio:5.36~197.37
Bearing:C&U, NAK, NSK,SKF
OEM service: OEM service
RXG30,RXG35,RXG40,RXG45,RXG50,RXG60,RXG70,RXG80,RXG100,RXG125
