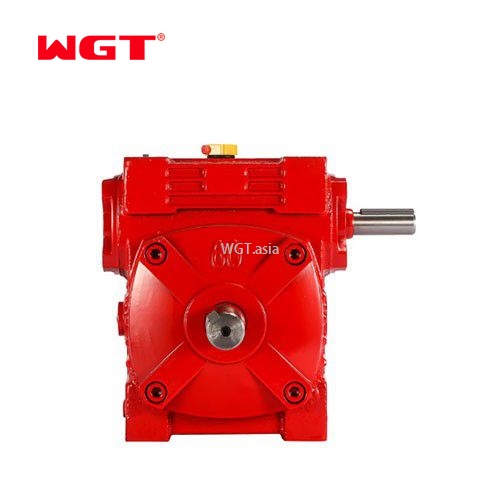

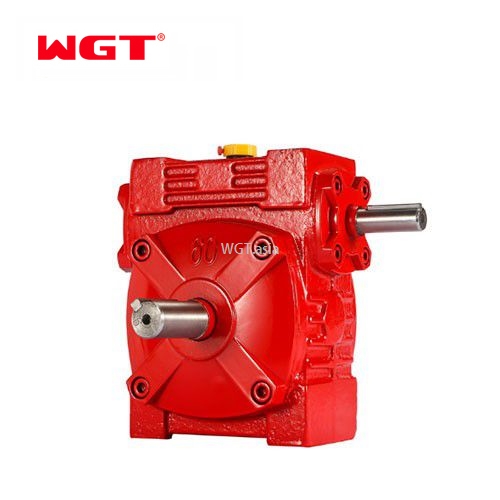

woruisen WpWA worm gear speed reducer reduction box gearbox for sale
WP series reducer, the worm is made of 45# high quality steel after heat treatment, the worm wheel is cast with tin bronze, the wear-resisting performance is good, especially on the bearing capacity is more obvious, mainly applicable to plastic, metallurgy, beverage, mine, lifting transportation, chemical construction and other mechanical equipment speed reduction drive.
Electronic Catalog
PDF Catalog
A.Features:
1. Stable transmission, low vibration, impact and noise, large reduction ratio, wide versatility and suitable for use with various mechanical equipment.
2. Large transmission ratio can be obtained by single-stage transmission, with compact structure. Most reducers have good self-locking property, and can save the brake device for mechanical equipment with brake requirements.
3. The meshing friction loss between worm screw teeth and worm gear surface is relatively large, so the transmission efficiency is lower than that of gear, and it is easy to be heated and the temperature is higher.
4. Higher requirements for lubrication and cooling.
5. Good interfitting. The worm and worm are manufactured in accordance with national standards.
B.Operating conditions:
1. The speed of worm reducer should not exceed 1500r/min.,
2.working environment temperature for -40 ℃ to + 40 ℃, when working environment temperature is lower than 0 ℃, lubricating oil must be heated before starting to more than 0 ℃, when working environment temperature is higher than 40 ℃, the cooling measures must be taken.
3. The feeding shaft of the worm gear reducer can rotate positively or negatively.
C.Notice:
1. The worm gear shaft must not be used as input shaft.
2. The machine does not pump oil at the factory. Sufficient mechanical oil must be added before operation.
3. The supporting motor (i.e. power) shall not exceed the value specified in the sign.
4. If the user wants to change the direction of entering the shaft, remove the lower end cover of the shaft, take out the worm shaft and adjust 180.Load it.Press install not hard knock, can slowly drive the two shafts, make it mesh.
| Technical data | |
| Types of: | WP gearbox |
| specification: | WP 40-250 |
| Speed ratio: | 1: 10,15,20,25,30,40,50,60,200,300,400,500,600,800,900,1200,1 500,1800,2400,2500,3000,3600 |
| colour: | Blue / silver or according to customer requirements |
|
material: |
Housing: cast iron casting Worm gear-copper-10-3 # Carburized and quenched Worm-20CrMn Ti, the surface harness strength is 56-62HRC Shaft chrome steel 45 # |
| filler: | Carton and wooden box |
| Bearing: | C & U Bearing |
| seal: | NAK SKF |
| Warranty: | One year |
| input power. | 0.06KW, 0. 09KW, 1.1KW, 1 5KW 2.2KW, 3KW, 4KW, 5 5KW, 7 5KW |
| use: | Industrial machinery: food, ceramics, chemical packaging, dyeing, carpentry, glass. |
| IEC flange: |
56B14, 63B14, 63B5, 63B5, 71B14, 80B14, etc. |
 000-WP-PRODUCTS-GUIDE.pdf
|
001-WP-REDUCER-SELECTION-METHODS.pdf
|
|
02-WP-UNIVERSAL-SPEED-REDUCER.pdf
|
|
 Electronic Catalog
|
 PDF Catalog |
 WP Series Price USD.pdf
|
 USD account information.pdf
|
WPW Universal Reducer Ratio has the following models:
WPW40 WPW50 WPW60 WPW70 WPW80 WPW100 WPW120 WPW135 WPW155 WPW175 WPW200 WPW250
WPWD40 WPWD50 WPWD60 WPWD70 WPWD80 WPWD100 WPWD120 WPWD135 WPWD155 WPWD175 WPWD200 WPWD250
WPWK40 WPWK50 WPWK60 WPWK70 WPWK80 WPWK100 WPWK120 WPWK135 WPWK155 WPWK175 WPWK200 WPWK250
WPWDK40 WPWDK50 WPWDK60 WPWDK70 WPWDK80 WPWDK100 WPWDK120 WPWDK135 WPWDK155 WPWDK175 WPWDK200 WPWDK250
WPWO40 WPWO50 WPWO60 WPWO70 WPWO80 WPWO100 WPWO120 WPWO135 WPWO155 WPWO175 WPWO200 WPWO250
WPWDO40 WPWDO50 WPWDO60 WPWDO70 WPWDO80 WPWDO100 WPWDO120 WPWDO135 WPWDO155 WPWDO175 WPWDO200 WPWDO250
WPWA40 WPWA50 WPWA60 WPWA70 WPWA80 WPWA100 WPWA120 WPWA135 WPWA155 WPWA175 WPWA200 WPWA250
WPWDA40 WPWDA50 WPWDA60 WPWDA70 WPWDA80 WPWDA100 WPWDA120 WPWDA135 WPWDA155 WPWDA175 WPWDA200 WPWDA250
WPWKA40 WPWKA50 WPWKA60 WPWKA70 WPWKA80 WPWKA100 WPWKA120 WPWKA135 WPWKA155 WPWKA175 WPWKA200 WPWKA250
WPWDKA40 WPWDKA50 WPWDKA60 WPWDKA70 WPWDKA80 WPWDKA100 WPWDKA120 WPWDKA135 WPWDKA155 WPWDKA175 WPWDKA200 WPWDKA250
WPWX40 WPWX50 WPWX60 WPWX70 WPWX80 WPWX100 WPWX120 WPWX135 WPWX155 WPWX175 WPWX200 WPWX250
WPWDX40 WPWDX50 WPWDX60 WPWDX70 WPWDX80 WPWDX100 WPWDX120 WPWDX135 WPWDX155 WPWDX175 WPWDX200 WPWDX250
WPWS40 WPWS50 WPWS60 WPWS70 WPWS80 WPWS100 WPWS120 WPWS135 WPWS155 WPWS175 WPWS200 WPWS250
WPWDS40 WPWDS50 WPWDS60 WPWDS70 WPWDS80 WPWDS100 WPWDS120 WPWDS135 WPWDS155 WPWDS175 WPWDS200 WPWDS250
WPWKS40 WPWKS50 WPWKS60 WPWKS70 WPWKS80 WPWKS100 WPWKS120 WPWKS135 WPWKS155 WPWKS175 WPWKS200 WPWKS250
WPWDKS40 WPWDKS50 WPWDKS60 WPWDKS70 WPWDKS80 WPWDKS100 WPWDKS120 WPWDKS135 WPWDKS155 WPWDKS175 WPWDKS200 WPWDKS250
WPWKO40 WPWKO50 WPWKO60 WPWKO70 WPWKO80 WPWKO100 WPWKO120 WPWKO135 WPWKO155 WPWKO175 WPWKO200 WPWKO250
WPWDKO40 WPWDKO50 WPWDKO60 WPWDKO70 WPWDKO80 WPWDKO100 WPWDKO120 WPWDKO135 WPWDKO155 WPWDKO175 WPWDKO200 WPWDKO250
WPWT40 WPWT50 WPWT60 WPWT70 WPWT80 WPWT100 WPWT120 WPWT135 WPWT155 WPWT175 WPWT200 WPWT250
WPWDT40 WPWDT50 WPWDT60 WPWDT70 WPWDT80 WPWDT100 WPWDT120 WPWDT135 WPWDT155 WPWDT175 WPWDT200 WPWDT250
WPWKT40 WPWKT50 WPWKT60 WPWKT70 WPWKT80 WPWKT100 WPWKT120 WPWKT135 WPWKT155 WPWKT175 WPWKT200 WPWKT250
WPWDKT40 WPWDKT50 WPWDKT60 WPWDKT70 WPWDKT80 WPWDKT100 WPWDKT120 WPWDKT135 WPWDKT155 WPWDKT175 WPWDKT200 WPWDKT250
WPWV40 WPWV50 WPWV60 WPWV70 WPWV80 WPWV100 WPWV120 WPWV135 WPWV155 WPWV175 WPWV200 WPWV250
WPWDV40 WPWDV50 WPWDV60 WPWDV70 WPWDV80 WPWDV100 WPWDV120 WPWDV135 WPWDV155 WPWDV175 WPWDV200 WPWDV250
WPWKV40 WPWKV50 WPWKV60 WPWKV70 WPWKV80 WPWKV100 WPWKV120 WPWKV135 WPWKV155 WPWKV175 WPWKV200 WPWKV250
WPWDKV40 WPWDKV50 WPWDKV60 WPWDKV70 WPWDKV80 WPWDKV100 WPWDKV120 WPWDKV135 WPWDKV155 WPWDKV175 WPWDKV200 WPWDKV250
