China gear reducer x/b series cyclo cycloidal pin wheel reducer motor gearbox conveyor with large torque

.Electronic Catalog PDF Catalog

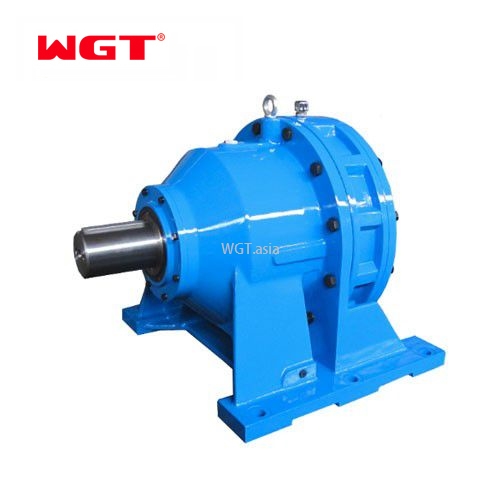

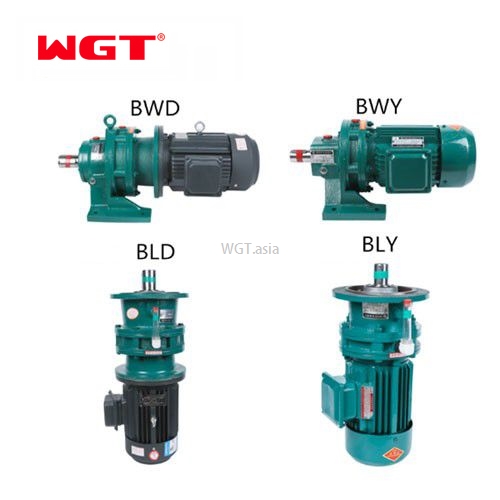

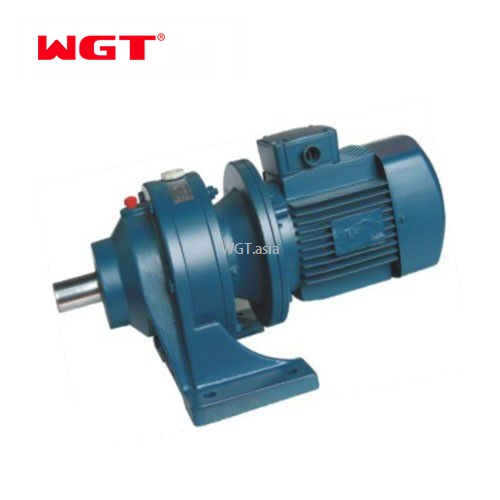

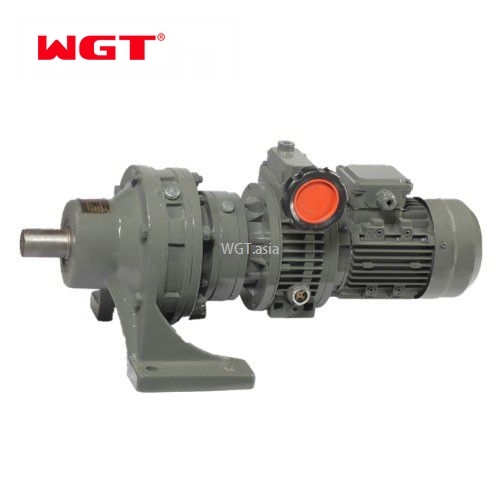

BL,BW,BLD,BWD,XL,XW,XLD,XWD series Cycloidal Gear Reducer

Cycloidal gear drives are unique and are still unsurpassed where drive technology is concerned. The cycloidal speed reducer is superior to traditional gear mechanisms, since it only operates with rolling force and is not exposed to shear forces. By comparison with gears with contact loads, Cyclo drives are more resistant

and can absorb extreme shock loads by means of uniform load distribution over the power transmitting

components. Cyclo drives and cyclo drive geared motors are characterized by their reliability, long service life

and outstanding efficiency, even under difficult conditions.

Characteristic

Premier in-line drives as both a reducer and gearmotor

Quiet, efficient and reliable operation with high torque density and compact sizes

Interchangeable cast iron housings in foot, flanged or face mount configurations

Available free-shaft, quill hollow shaft, C-face adaptors, shovel base, and top-mount inputs

Mininimal vibration, low noise, low backlash and extended operational life

Type / Model

X2, X3, X4, X5, X6, X7, X9, X9, X10, X11, XE31, XE42, XE53, XE63, XE64, XE74, XE84, XE85, XE95, XE106, XE117

B0, B1, B2, B3, B4, B5, B6, B7, B8, B10, B21, B31, B41, B42, B52, B53, B63, B74, B85

JXJ0, JXJ1, JXJ2, JXJ3, JXJ4, JXJ5, JXJ6, JXJ7, JXJ8, JXJE10, JXJE21

B12, B15, B18, B22, B27, B33, B39, B45, B55, B1812, B2215, B2715, B2718, B3318, B3322, B3922, B5527

XWY5.5-5-23, BLED63-289-1.5, XWED3-85-187-YB-B3, XWD4-5-29, xled1.5-63-187,

BWY3-43-2.2, BLEY53-391-1.5, JXJ (L) 4-43-5.5, JXJE (L) 53-385-2.2
