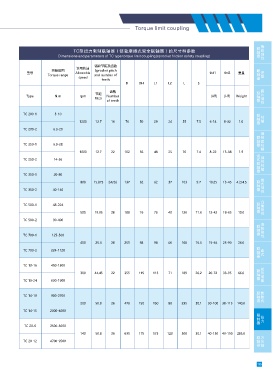

Torque limit coupling

链轮节距及齿数
许用转速
扭矩范围 Sprocket pitch
型号 Allowable Φd1 Φd2 重量
Torque range and number of
speed
teeth
D DH L1 L2 L S
齿数
节距
Type N.m rpm Number （H7) (H7) Weight
Pitch
of teeth
TC 200-1 3-10
1200 12.7 16 76 50 29 24 55 7.5 6-14 8-32 1.0
TC 200-2 6.3-20

TC 250-1 6.3-28
1000 12.7 22 102 56 48 25 76 7.4 8-22 13-38 1.9
TC 250-2 14-56

TC 350-1 20-80
800 15.875 24/26 137 62 62 37 103 9.7 10.25 13-45 4.2/4.5
TC 350-2 40-140

TC 500-1 48-224
500 19.05 28 188 76 76 40 120 11.6 12-42 18-65 10.0
TC 500-2 90-400

TC 700-1 125-560
400 25.4 28 251 98 98 66 168 15.3 15-64 23-90 26.0
TC 700-2 224-1120

TC 10-16 400-1300
300 44.45 22 355 115 115 71 189 26.2 20-72 33-95 66.0
TC 10-24 600-1900

TC 14-10 900-2700
200 50.8 26 470 150 150 80 235 30.1 30-100 38-115 140.0
TC 14-15 2000-4000

TC 20-6 2500-5000
140 50.8 36 631 175 175 120 300 30.1 40-130 43-150 285.0
TC 20-12 4700-9500
