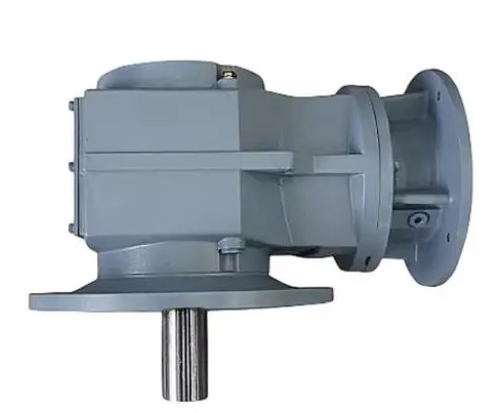

Principle of RF series hard tooth surface helical gear reducer

The RF series hard tooth helical gear reducer is an efficient and stable power conversion device that plays an important role in the field of mechanical transmission. Not only is it widely used in industrial production, but it also holds an important position in fields such as automobiles, ships, and airplanes. This article will provide a detailed introduction to the principle, structural characteristics, and application scope of the RF series hard tooth helical gear reducer, aiming to help readers gain a deeper understanding.
1、 Principle of gearbox
The RF series hard tooth helical gear reducer is a power conversion device that converts the high-speed motion of a motor into low-speed high torque output. The principle is to utilize the relationship between the angle between gears and the number of teeth of helical gears, and achieve the transmission effect through the mutual meshing of gears. The hard tooth surface design ensures wear resistance, high transmission efficiency, and low noise during the transmission process of the gearbox. Meanwhile, the selection of reduction ratio also determines the output speed and torque.
2、 Structural characteristics
The RF series hard tooth helical gear reducer has a compact structure, small volume, light weight, and strong adaptability. It consists of a motor, input shaft, intermediate shaft, output shaft, support seat, gear teeth, housing, etc. Among them, the helical gear is made of high-quality alloy steel material, and the strength, hardness, and accuracy of the hard tooth surface are ensured through precision machining and heat treatment processes. At the same time, the bearings of the reducer are made of high-quality bearings to ensure the smoothness and reliability of the transmission process. The installation methods of the entire gearbox are diverse, and can be adjusted and combined according to different usage needs.
3、 Application scope
The RF series hard tooth helical gear reducer is widely used in various transmission systems, including mechanical equipment, engineering machinery, metallurgical equipment, mining equipment, petroleum equipment, chemical equipment and other fields. It can convert the high-speed rotation of the input motor into appropriate output speed and torque, meeting the working requirements of different devices. Especially in industries that require high transmission accuracy and reliability, the RF series reducer is an indispensable and important indicator.
Summary:
The RF series hard tooth helical gear reducer is an efficient and stable power conversion device that plays an important role. It achieves the conversion of high-speed motor motion to low-speed high torque through the relationship between the gear angle and the number of teeth of the helical gear. At the same time, the reducer has a compact structure, small size, light weight, and strong adaptability, and is widely used in various transmission systems. Its application scope covers multiple fields such as mechanical equipment, engineering machinery, metallurgical equipment, mining equipment, petroleum equipment, chemical equipment, etc. Whether used in industrial production or transportation vehicles such as automobiles, ships, airplanes, etc., RF series reducers can leverage their high efficiency, low noise, wear resistance, and other characteristics to provide power support for various industries.
