P. 64

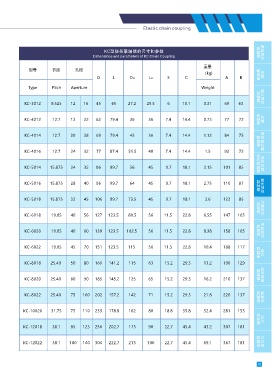

Elastic chain coupling
重量
型号 节距 孔径
（kg)
O L DH LH S C A B
Type Pitch Aperture Weight
KC-3012 9.525 12 16 45 65 27.2 29.5 6 10.1 0.31 69 63
KC-4012 12.7 12 22 62 79.4 36 36 7.4 14.4 0.73 77 72
KC-4014 12.7 20 28 69 79.4 45 36 7.4 14.4 1.12 84 75
KC-4016 12.7 24 32 77 87.4 51.5 40 7.4 14.4 1.5 92 72
KC-5014 15.875 24 35 86 99.7 56 45 9.7 18.1 2.15 101 85
KC-5016 15.875 28 40 96 99.7 64 45 9.7 18.1 2.75 110 87
KC-5018 15.875 32 45 106 99.7 73.5 45 9.7 18.1 3.6 122 85
KC-6018 19.05 40 56 127 123.5 89.5 56 11.5 22.8 6.55 147 105
KC-6020 19.05 40 60 139 123.5 102.5 56 11.5 22.8 8.38 158 105
KC-6022 19.05 45 70 151 123.5 115 56 11.5 22.8 10.4 168 117
KC-8018 25.40 50 80 169 141.2 115 63 15.2 29.3 13.2 190 129
KC-8020 25.40 60 90 185 145.2 125 65 15.2 29.3 16.2 210 137
KC-8022 25.40 75 100 202 157.2 142 71 15.2 29.3 21.8 226 137
KC-10020 31.75 75 110 233 178.8 162 80 18.8 35.8 32.4 281 153
KC-12018 38.1 85 125 256 202.7 173 90 22.7 45.4 43.2 307 181
KC-12022 38.1 100 140 304 222.7 213 100 22.7 45.4 69.1 367 181
