P. 79

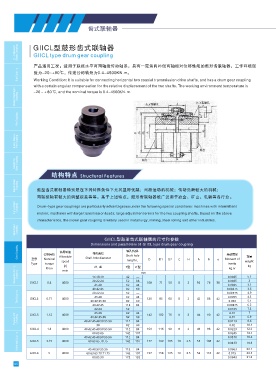

GIICL type drum gear coupling
结构特点 Structural Features
Dimensions and parameters of GIICL type drum gear coupling
许用转速 轴孔长度L
公称转矩 轴孔直径 转动惯量
Allowable Shaft hole 重量
型号 Nominal Shaft hole diameter length L D D1 D2 C H A B e Moment of
speed weight
Type torque inertia
[n] d1, d2 Y型 J1型 kg
KN.m kg.㎡
rmin
mm
16.18.19 42 — 0.0035 5.1
20.22.24 52 38 0.0035 3
GIICL1 0.4 4000 108 71 50 8 2 36 76 38
25.28 62 44 0.0035 3.1
30.32.35 82 60 0.00375 3.6
20.22.24 52 — 0.00575 4.9
25.28 62 44 0.0055 4.5
GllCL2 0.71 4000 120 83 60 8 2 42 88 42
30.32.35.38 82 60 0.006 5.1
40.42.45 112 84 0.00675 6.2
22.24 52 — 0.0105 7.5
25.28 62 44 0.01 7
GIICL3 1.12 4000 142 102 75 8 2 44 90 42
30.32.35.38 82 60 0.01 6.9
40.42.45.48.50.55.56 112 84 0.0113 8.6
38 82 60 0.02 10.1
GIICL4 1.8 4000 40.42.45.48.50.55.56 112 84 159 116 90 8 2 49 98 42 0.0223 12.2
60.63.65 142 107 0.0245 14.5
40.42.45.48.50.55.56 112 84 0.0378 16.4
GIICL5 3.15 4000 60.63.65.70.75 142 107 177 139 105 10 2.5 55 108 42
0.0433 19.6
45.48.50.55.56 112 84 0.0663 22.1
GIICL6 5 4000 60.63.65.70.71.75 142 107 197 158 125 10 2.5 56 110 42 0.075 26.5
80.85.90 172 132 0.0843 31.2
