Gear coupling

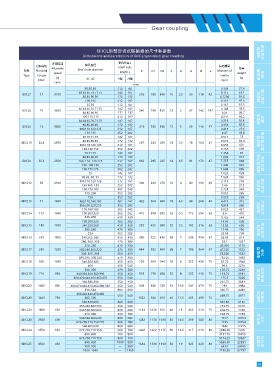

Dimensions and parameters of GIICL type drum gear coupling
许用转速 轴孔长度L
公称转矩 轴孔直径 Shaft hole 转动惯量
Allowable 重量
型号 Nominal Shaft hole diameter D D1 D2 C H A B e Moment of
speed length L weight
Type torque inertia
[n] kg
KN.m d1, d2 Y型 J1型 kg.㎡
rmin
mm
50.55.56 112 84 0.103 27.6
60.63.65.70.71.75 142 107 0.115 33.1
GIICL7 7.1 3750 219 180 140 10 2.5 60 118 42
80.85.90.95 172 132 0.1298 39.2
100.105 212 167 0.151 47.5
55.56 112 84 0.167 35.5
60.63.65.70.71.75 142 107 0.188 42.3
GIICL8 10 3300 240 196 155 12 3 67 142 147
80.85.90.95 172 132 0.21 49.7
100.110.115 212 167 0.241 60.2
60.63.65.70.71.75 142 107 0.316 55.6
80.85.90.95 172 132 0.356 65.6
GIICL9 16 3000 276 232 180 12 3 69 146 47
100.110.120.125 212 167 0.413 79.6
130.135 252 202 0.47 95.8
65.70.71.75 142 107 0.511 72
80.85.90.95 172 132 0.573 84.4
GIICL10 22.4 2650 297 249 200 14 3.5 78 164 47
100.110.120.125 212 167 0.659 101
130.140.150 252 202 0.754 109
70.71.75 142 107 1.454 97
80.85.90.95 172 132 1.096 114
GIICLll 35.5 2350 100. 110. 120.125 212 167 362 295 235 14 3.5 81 170 47 1.235 138
130. 140.150 252 202 1.340 161
160.170.175 302 242 1.588 189
75 142 107 1.623 128
80.85. 90. 95 172 132 1.828 150
100.110.120.125 212 167 2.113 205
GIICL12 50 2100 392 330 270 16 4 89 190 49
130.140. 150 252 202 2.40 213
160.170.180 302 242 2.728 248
190. 200 352 282 3.055 285
150 252 202 3.925 269
GIICL13 71 1850 160.170.180.185 302 242 422 360 300 18 4.5 98 208 49 4.425 315
190.200.220.225 352 282 4.918 360
170.180.185 302 242 8.025 421
GIICL14 112 1650 190.200.220 352 282 472 398 335 22 5.5 172 296 63 8.8 476
240. 250 410 330 9.725 544
190.200.220 352 282 14.30 608
GIICL15 180 1500 240.250.260 410 330 532 455 380 22 5.5 182 316 63 15.85 696
280. 285 470 380 17.45 786
220 352 282 23.93 799
GIICL16 250 1300 240.250. 260 410 330 580 522 430 28 7 209 354 67 26.45 913
280. 300. 320 470 380 29.1 1027
250. 260 410 330 43.095 1176
GIICL17 355 1200 280.290.300.320 470 380 644 582 490 28 7 198 364 67 47.525 1322
340. 360. 365 550 450 53.525 1532
280.295. 300.320 470 380 78.525 1698
GIICL18 500 1050 340.360.380 550 450 726 654 540 28 8 222 430 75 87.75 1948
400 650 540 99.5 2278
300. 320 470 380 136.75 2249
GIICL19 710 950 340.350.360.380.390 550 450 818 748 630 32 8 232 440 75 153.75 2591
400.420.440.450.460.470 650 540 175.5 3026
360.380.390 550 450 261.75 3384
GIICL20 1000 800 400.420.440.450.460.480.500 650 540 928 838 720 32 10.5 247 470 75 299 3984
530. 540 800 680 360.75 4430
400.420.440.450.460
650 540 468.75 4977
GIICL21 1400 750 480. 500 1022 928 810 40 11.5 255 490 75
530.560.600 800 680 561.50 6152
450.460.480.500 650 540 753.75 6318
GIICL22 1800 650 530.560.600.630 800 680 1134 1036 915 40 13 262 510 75 904.75 7738
670. 680 900 780 904.75 7738
530.560.600.630 800 680 1517 10013
GIICL23 2500 600 1282 1178 1030 50 14.5 299 580 80
670.700.710.750.770 900 780 1725 11553
560.600.630 800 680 2486 12915
GIICL24 3550 550 670.700.710.750 900 780 1428 1322 1175 50 16.5 317 610 80 2838.50 150l5
800. 850 100 880 3131.75 16015
670.700.710.750 900 780 5174.25 19837
800. 850 1000 880 5836.50 22381
GIICL25 4500 460 1644 1538 1390 50 19 325 620 80
900. 950 — 980 6413 24765
1000. 1040 — 1100 7198.25 27797
